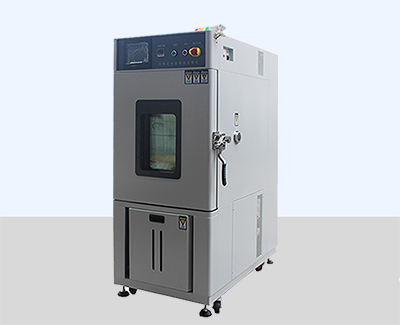

环测箱小

恒温恒湿箱厂家直销

恒温恒湿箱 用途:
      RHP系列产品为各行业(如电子零件、汽车零件、笔计本计算机)提供零件、主要配件、半成品的温湿度环境试验。恒温恒湿机主要由控制面板、配电盘、保湿隔层、送风机、加热器、冷冻系统组合而成。


恒温恒湿箱 特点:
    1、完美的造型设计:圆弧造型及表面喷塑处理,高质感外观,并采用平面无反作用把手,操作容易,安全可靠。
    2、明亮,视野宽广的大型观察窗:采用三层真空镀膜窗口和飞利浦节能荧光灯,无须雨刷除雾,保持清晰的观测效果,可随时观察试品的状况。
     3、加湿系统管路与控制电路分离:加湿系统管路与电源、控制器、电路板分离,可避免因管路漏水而影响电路,提高安全性。
     4、先进可靠的冷冻及控制系统:原装进口欧美全封闭压缩机,进口环保冷媒,世界知名品牌的冷冻器件,原装进口LCD触摸屏控制器,界面友好,操作简单易学。

恒温恒湿箱执行与满足标准:
  GB10592-89高低温箱技术条件;
   GB10586-93湿热试验箱技术条件;
 《GB2423.1-89电工电子产品基本环境试验规程》:低温试验方法;
 《GB2423.2-89电工电子产品基本环境试验规程》:高温试验方法;
 《GB/T2423.4-93电工电子产品基本环境试验规程》:交变湿热试验方法;
 《GB/T2423.3-93电工电子产品基本环境试验规程》:恒定湿热试验方法。

恒温恒湿箱 技术参数:
型 号Model R H P
23 64 80 100 120 150 225 408 800 1000
控制系统System 平衡调温调湿控制系统Balance product wet control system
温度范围Temperature range -70℃~150℃
湿度范围Humidity Range 20~98%R.H
温度波动度Temperature Constancy ±0.5℃
湿度波动度Humidity Constancy ±2.5%R.H
温度偏差Temperature deviation 66±2.0℃
湿度偏差Humidity deviation ±3%R.H(≥75%R.H时)/±5.0%R.H(<75%R.H时)
升温时间Heat up time -70℃~150℃约60分钟以内Within 60min
降温时间Pull down time 20℃~-70℃约75分钟以内Within 75min
内箱尺寸Internal dimension(cm) W 30 40 40 50 50 50 60 68 100 100
H 30 40 50 50 50 60 75 80 100 100
D 25 40 40 40 48 50 50 75 80 100
外箱尺寸External dimension(cm) W 50 60 60 70 70 70 80 88 120 120
H 77 86 158 158 158 168 173 178 198 198
D 101 121 113 113 121 123 123 148 153 173
内箱材质Internal material SUS304高级不锈钢板SUS304 Senior stainless steel
外箱材质External material SUS304高级不锈钢板或钢板静电喷涂表面处理Stainless steel plate or steel SUS304 advanced electrostatic spray surface treatment
保温材质Insulation material 高密度聚胺酯泡沫及玻璃纤维High poly amino ester foam and glass fiber
冷冻系统Refrigeration system 气冷式/水冷式Air type/water-cooled
单段/复叠式,全密闭式压缩机,环保冷媒(R404a/R23)Single section/cascade type, all closed compressor, environmental protection, cold media
控制器Controllor TEMI880 5.7英寸LCD彩色触摸屏,中/英文显示 TEMI880 color LCD screen,5.7 inches in English/Chinese
保护装置Safety Devices 无熔丝开关、压缩机超压、过热、过电流保护、超温保护、风机超载保护、保险丝、干烧机保护器、缺水保护开关、故障警告系统、警报器
No welding wire switch,compressor,overheating,over current protection,overtemperature protection,blower load overload protection,fuse,dry heating machine protector,water protection switch,fault warning system,alarm
标准配件Standard Accessories 28×34cm三层真空层观察窗1个、ф5cm测试孔1个、试样架2套、箱内照明灯1个、指示灯、移动工作轮4个、加湿水箱1个、电源线2米、通讯界面28 by 34cm three-layer vacuum layer observation window,ф 5cm test hole,2 sets of sample frame,lights,floodlight working round 4,humidifying tank,2 meters,communication power interface
使用环境温度Ambient Temp 5℃~35℃
电源功率Power AC380±10%?50HZ 三相四线+保护地线 3 phase 4wires+Ground Wire

冷冻系统Refrigeration system 气冷式/水冷式Air type/water-cooled
单段/复叠式,全密闭式压缩机,环保冷媒(R404a/R23)Single section/cascade type, all closed compressor, environmental protection, cold media
控制器Controllor TEMP 880 5.7英寸LCD彩色触摸屏,中/英文显示TEMP 880 color LCD screen,5.7 inches in English/Chinese
保护装置Safety Devices 无熔丝开关、压缩机超压、过热、过电流保护、超温保护、风机超载保护、保险丝、干烧机保护器、缺水保护开关、故障警告系统、警报器No welding wire switch,compressor,overheating,over current protection,overtemperature protection,blower load overload protection,fuse,dry heating machine protector,water protection switch,fault warning system,alarm
标准配件Standard Accessories 28×34cm三层真空层观察窗1个、11W节能照明窗口灯1支、ф5cm测试孔1个(附不锈钢孔盖1只、硅胶塞头1只)、不锈钢SUS #304方型冲孔钢板置物架2套、电源线2米、USB预留接口一个、电源线4.0 mmx4蕊,低阻抗橡胶电缆线2.5m长1条、保险丝一套(易损件)、标准测试用不织布5片、控制器使用说明书一套、操作说明书一套、测试报告一份28×34cm three-layer viewing window a vacuum, 11W energy saving lamp lighting window 1, ф5cm test hole one (with a stainless steel manhole covers,silicone plugs a), SUS # 304 stainless steel square punching glove 2 sets of racks, power cable 2 meters, USB interface, a reserved, power cord 4.0 mmx4 core, low-impedance rubber cable 2.5m long one, fuse a set of (wearing parts), Standard test nonwoven 5, the controller uses a set of instructions, a set of operating instructions, a test report
选配件Options 另加测试孔、另加置物架、记录仪、计算机通讯接口、联机软件、大玻璃窗、逆渗透纯水机、产品合格证、电气原理图、制冷系统图、产品材料明细表、保修卡、外购件合格证Plus a test hole, plus racks, recorders, computer communication interface, online software, large windows, reverse osmosis water machine, product certification, electrical schematics, cooling system diagram, the product bill of materials, warranty cards, purchased parts certificate
使用环境Ambient 5℃~35℃、≤85%RH、86~106Kpa
电源功率Power AC380V±10% 50±0.5Hz 三相五线制3 phase 4wires+Ground Wire
注:
1.以上数据均在环境温度(QT)25℃,工作室无负载条件下测得;
2.可根据用户的具体要求定做非标型“高低温试验室”、“低温试验室”。
